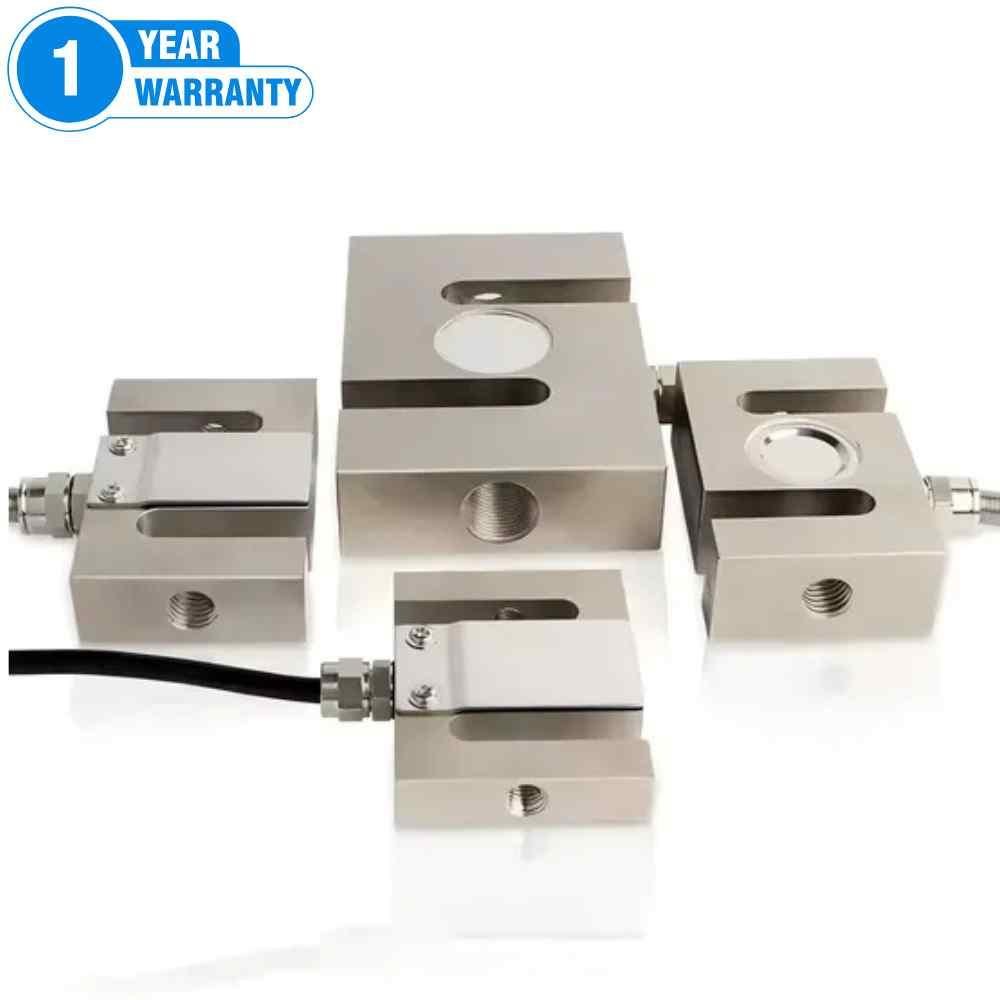

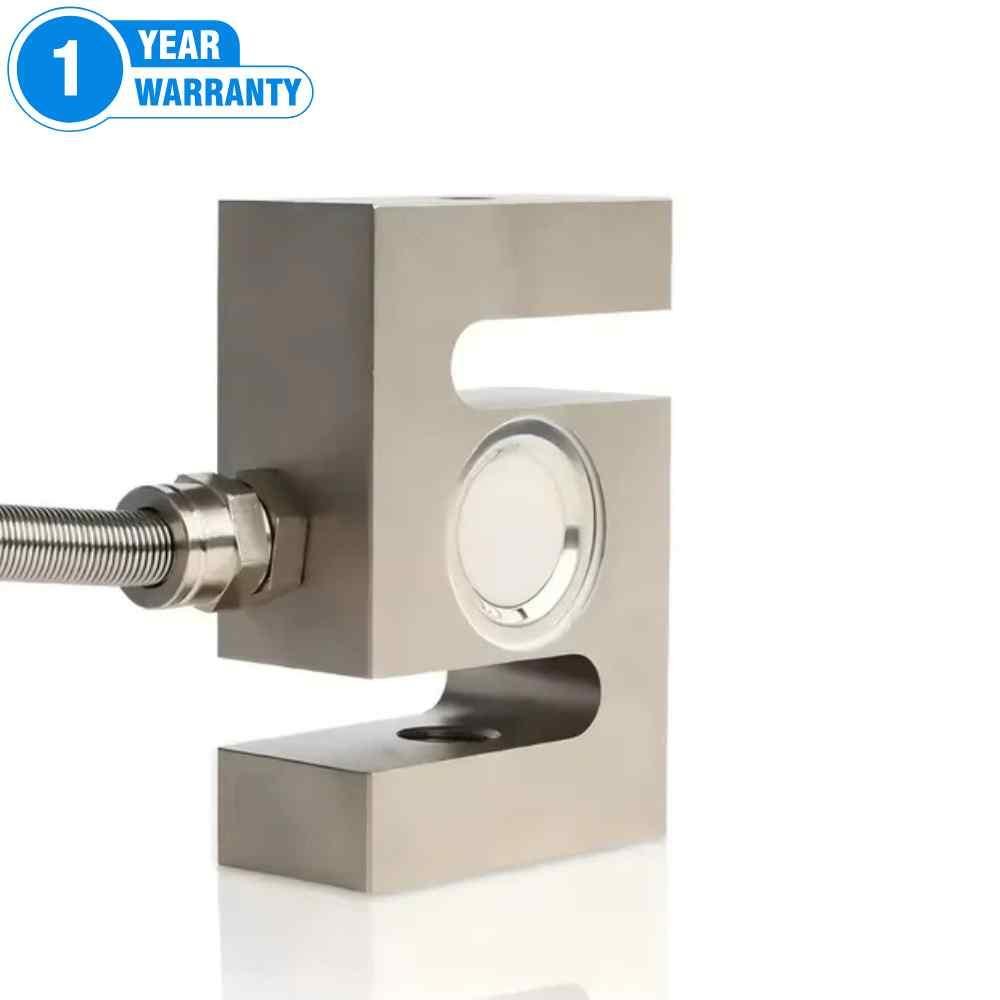

S-Type Load Cell (Up to 2000kg / 2 Ton) – High Precision Force Sensor | UP Scales Manufacturing
Engineered for Accuracy, Built for Durability: Your Premier 'Make in India' S-Type Load Cell
In the world of industrial weighing and force measurement, the heart of every system is its load cell. At UP Scales Manufacturing, we are proud to introduce our flagship product: high-precision S-Type Load Cells, engineered to deliver uncompromising accuracy, rugged reliability, and exceptional value for a wide range of applications across India.
Our S-Type load cells, with capacities extending up to 2000kg (2 Ton), are the culmination of advanced engineering and stringent quality control. Designed for both tension and compression measurements, they are the ideal solution for everything from heavy-duty industrial scales to precision batching systems.
Every load cell comes with a robust 1-year warranty, pan-India delivery, and our promise of unparalleled support.
Why Choose UP Scales S-Type Load Cells?
Unmatched Precision & Performance
- High Accuracy Class C3: Our load cells meet rigorous accuracy standards, ensuring reliable and repeatable measurements critical for quality control and commercial transactions.
- Excellent Sensitivity (2.0mV/V): Provides a strong, clear signal output for precise reading by indicators, even with minimal weight changes.
- Low Zero Output: Minimizes signal drift and ensures stability over time, guaranteeing long-term accuracy you can depend on.
Rugged Industrial-Grade Construction
- Alloy Steel Construction: Machined from high-strength alloy steel, our S-Type load cells are built to withstand harsh industrial environments, including shock loads and overload conditions.
- IP67 Protection Rating: This is a game-changer. Fully waterproof, dust-tight, and resistant to temporary immersion. Perfect for washdown environments in food processing, chemical plants, and outdoor applications where moisture and dust are a constant challenge.
- High Ultimate Overload (≥300%): Built with a safety factor that far exceeds typical requirements, protecting your investment from accidental overloads and ensuring a long operational life.
Superior Technical Specifications
Our load cells are manufactured to exceed expectations. Here’s what’s under the hood:
| Parameter | Specification |
|---|---|
| Model | CZL301 Series |
| Capacity Range | Up to 2000kg (2 Ton) & lower capacities available |
| Accuracy Class | C3 |
| Rated Output | 2.0 ± 0.002mV/V |
| Zero Balance | ± 0.5% F.S. |
| Input Resistance | 350Ω ± 5Ω |
| Output Resistance | 350Ω ± 3Ω |
| Insulation Resistance | ≥5000 MΩ (At 50 VDC) |
| Protection Class | IP67 (Waterproof & Dustproof) |
| Ultimate Overload | ≥300% of Rated Capacity |
| Operating Temp. Range | -20°C to +60°C |
| Cable | 5-Core Shielded (Red: +Exc, Black: -Exc, Green: +Sig, White: -Sig, Yellow: Shield) |
Where Are S-Type Load Cells Used?
The versatility of the S-type design makes it a favorite across industries:
- Industrial Weighing: Platform scales, tank and silo weighing, hopper scales, conveyor belt scales.
- Batching & Process Control: Filling machines, ingredient batching systems, force testing.
- Overhead Weighing: Crane scales, hanging scales, and dynamometers for tension measurement.
- Agriculture & Food Processing: Livestock scales, grain hoppers, and processing equipment (thanks to the IP67 rating).
- Logistics & Warehousing: Pallet weighing, forklift scales, and inventory management systems.
The UP Scales Manufacturing Advantage
When you buy from us, you're not just getting a component; you're getting a partnership.
- 'Make in India' Pride: We design and manufacture right here in India, ensuring quality control and supporting the national economy.
- 1-Year Comprehensive Warranty: We stand firmly behind our products. If any issue arises under normal operating conditions within one year, we replace or repair it, no questions asked.
- Pan-India Delivery & Support: No matter where you are located, we can ship our load cells to you quickly and efficiently. Our technical support team is just a call away.
- Custom Solutions Available: Need a specific cable length, connector, or form factor? We can provide tailored solutions to meet your unique application requirements.
- Direct-from-Manufacturer Pricing: By eliminating middlemen, we offer superior quality at the most competitive prices in the market.

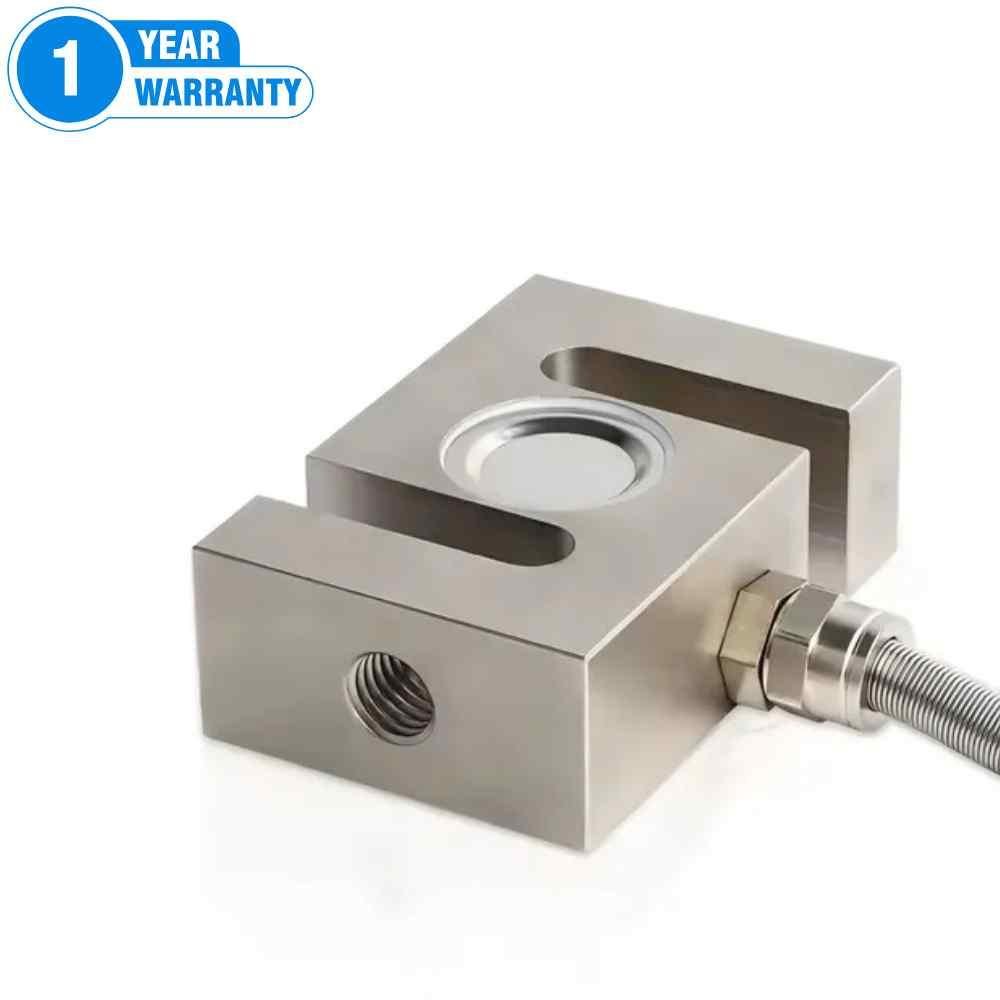

The 'S' refers to its shape, which resembles the letter 'S'. This design is inherently stable and is excellent for measuring both tensile (pulling) and compressive (pushing) forces, making it incredibly versatile.
An IP67 rating means the load cell is completely protected against dust and can be immersed in 1 meter of water for up to 30 minutes. This is crucial for applications in food processing, chemical industries, or any environment that requires frequent washing or is exposed to the elements.
The standard 5-wire configuration is universal. You will connect:
1.) Red → Excitation + (From Indicator)
2.) Black → Excitation - (From Indicator)
3.) Green → Signal + (To Indicator)
4.) White → Signal - (To Indicator)
5.) Yellow → Shield (Ground)
Yes! S-Type load cells are perfect for creating simple, cost-effective scales like hanging scales or small platform scales. For larger platforms, multiple load cells are used (e.g., one in each corner).
We maintain stock for popular capacities. For bulk and custom orders, we provide a specific lead time upon quotation.
